CB 2 Series

Administrator Guide

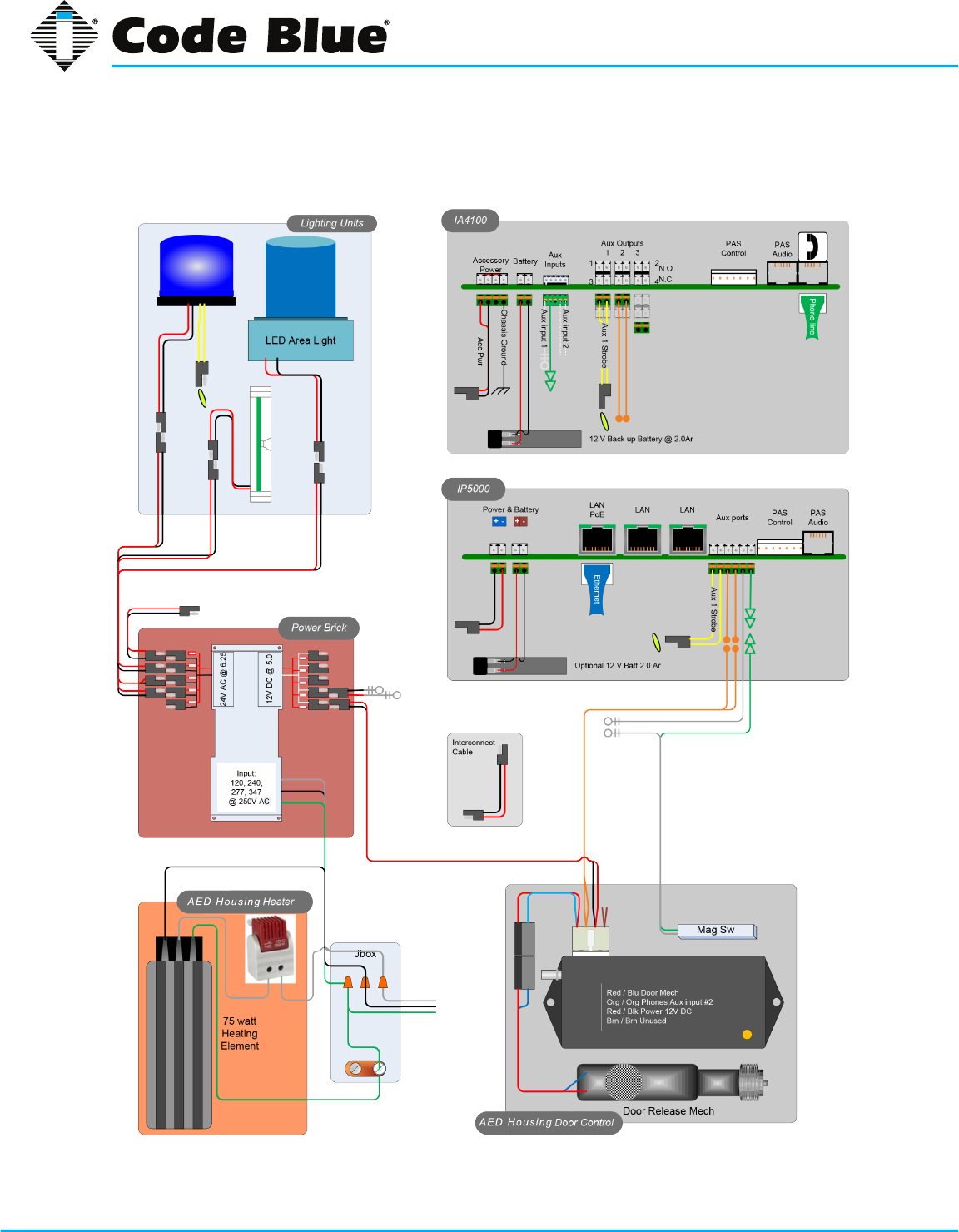

5.3 CB 2-e with AED Housing Wiring Diagram

Product wiring diagram shown reasonably represents current offering and is intended to assist in component identication

and service. Earlier product production may have different components and wiring connections. Reference the model and

serial number from the unit ID tag and contact manufacturer to conrm replacement part version and availability.
